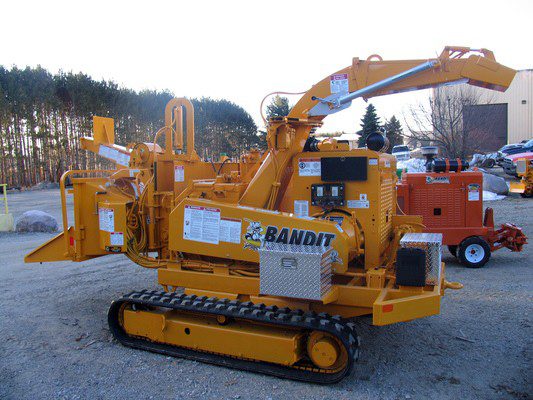

INTIMIDATOR™ 12XP Track Hand-Fed Chipper

Companies seeking a highly productive, compact drum-style track chipper turn to the Intimidator™ 12XP Track. Featuring a 24-inch diameter drum with a large 14.25-inch by 17-inch throat opening, it easily processes large brush stacks and limbs.

Track

Style

120

Horsepower

120 ft/min

Feed Rate

INTIMIDATOR™ 12XP Track Hand-Fed Chipper

Let's Get Started

"*" indicates required fields

Hidden
Newsletter Signup
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
This field is for validation purposes and should be left unchanged.

Key Specifications

Horsepower 74 or 120 horsepower diesel engine options
Diameter 24" diameter x 18 3/4" wide drum with four knives
Wheels (2) 7 1/2" diameter x 16 3/8" wide feed wheels with bottom clean out door
Undercarraige Track One rubber track undercarriage
Infeed Standard 29" high x 54" infeed with folding tray
Discharge 270 degree hydraulic swivel discharge with end deflector
Control Panel Bandit control panel with reversing auto feed

Performance

Capacity 12 in
Feed Rate 120 ft/min
Fuel Tank 50 gl
Hydraulic Tank 50 gl
Lift Cylinder Standard hydraulic lift cylinder
Winch Optional Hydraulic winch

Dimensions

Opening 17 in x 14.25 in
Width 77 in
Height 96 in
Length (Open) 142 in
Weight 8500 lbs
