This model is available in two transmission options: Hydrostatic or manual synchro shuttle transmission.
The 45-hp, turbo-charged CT4045 compact tractor offers 2,716-lb. 3-point hitch lift capacity for heavy-duty jobs. Turbo-charged for consistently high performance and impressive low-end torque even in high altitudes, this fast and powerful tractor features a Category 1 three-point hitch for heavy-duty attachment and implement work.
Advertised Price Disclaimer: The displayed price is the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote.

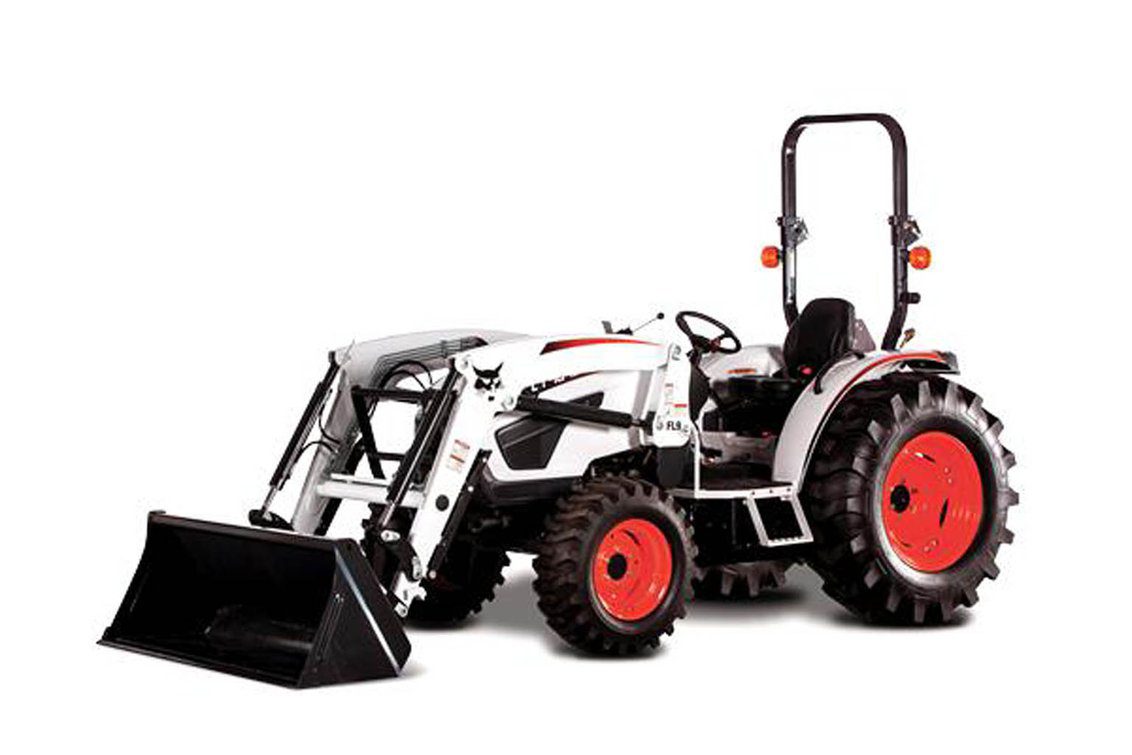

Bobcat CT4045 Compact Tractor
Let's Get Started
Bobcat CT4045 Compact Tractor Specs & Add-Ons
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Key Specifications
Horsepower44.9 hp
Lift Capacity at 24" behind Lift Point2,716 lb
PTO HP32.8 hp
Transmission Type3-Range HST
Width70 in
Turning Radius8' 7"
Wheelbase5' 11"
Fuel Tank11.9 gal
Implement Hydraulic Flow9.6 gal/min
Total Hydraulic Flow16.5 gal/min
Steering Hydraulic Flow6.9 gal/min
Brake TypeWet Multi Disc
Transmission Type3-Range HST
Performance
Operating Weight3,745 lb
Travel Speed18.5 mph
Travel Speed - Reverse12.9 mph
3-Point HitchCategory 1
3-pt Lift Control TypeHydraulic Position Control System
Lift Capacity at 24" behind Lift Point2,716 lb
Rear PTO SystemIndependent
Rear PTO - RPM540
PTO HP32.8 hp
Mid PTO - RPM2119
Emissions Tier (EPA)Tier 4
Horsepower44.9 hp
Displacement111 in³
Number of Cylinders3
Gross HP44.9 hp
Engine Model3FT-TL4
Dimensions
Length125.5 in
Width70 in
Height97.4 in
Ground Clearance15.3 in
Turning Radius8' 7"
Wheelbase5' 11"
Front Tire SizeFront Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15)
Get excellent sightlines to the work and great all-around visibility from the open cab. You’ll also appreciate how fast, and easy it is to get on or off the tractor from either side throughout the day when changing implements or loading materials. The foldable Roll-Over Protective Structure (ROPS) protects the operator in the event of a rollover, and can be temporarily lowered when driving under trees or into garages.
Transmission Options
Choose from two transmission options on 4000 platform models. Manual synchro shuttle transmission offers shift-on-the-fly functionality similar to a stick-shift automobile. Clutch and shift across eight forward and eight rear speeds as you travel. 3-Range HST hydrostatic transmission option uses hydraulic pressure to change speed, operating similarly to a vehicle. You only need to stop moving if you want to change your range.
Standard Features
Get the features standard on all Bobcat tractors, including four-wheel drive, high ground speeds, rear PTO and three-point hitch, and a low-noise, low-vibration engine. Plus other standard features including: Turbo-charged performance for consistently high performance and low-end torque. Power and tilt steering for near-effortless maneuverability. Lever-controlled three-point hitch for simple implement connection
