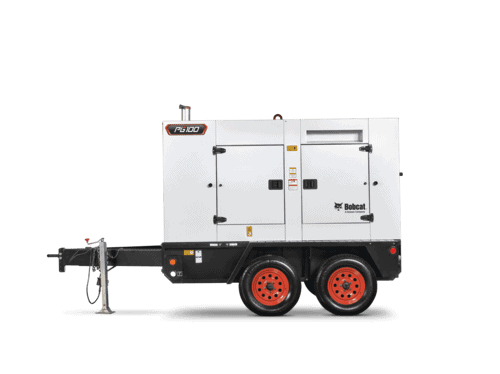

Bobcat PG100 Towable Generator

The diesel-powered mobile and towable Bobcat® PG100 portable generator (100 kVA/80 kW) delivers power you can depend on, even in the toughest jobsite conditions.

  • Powered by a reliable Cummins® F3.8 engine
  • 100 kVA (80 kW) output with ability to switch between 50 Hz and 60 Hz
  • Ideal for construction sites, municipalities, special events and entertainment

37 h

Runtime

100 kVA (80 kW)

Power Rating

67 dB(A)

Sound Level

Portable Power Equipment Special Offers

As low as 0% for 36 months* on select portable power products or low lease payments.

Bobcat PG100 Towable Generator Features

EPA Certified for Fuel Efficiency & Sound Levels

EPA Certified for Fuel Efficiency & Sound Levels

Engineered to meet or exceed EPA regulations, Bobcat portable generators offer industry-leading Tier 4 fuel efficiency and long runtimes, along with impressively quiet operation suitable for any application.

 User-Friendly Interface

User-Friendly Interface

Easy-to-read analog gauges make it easy for you to monitor your generator’s performance with a quick glance. Intuitive controls with built-in safety measures protect both you and your machine.

 Intelligent Load Management System

Intelligent Load Management System

Exclusive to Bobcat, the ILMS option protects your generator’s engine and exhaust after-treatment system during unfavorable low-load operating conditions by minimizing wet stacking, harmful sludge buildup and the need for costly repairs.

Bobcat PG100 Towable Generator Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Runtime Hours @ 75% Load 37
Power Output @ 1800RPM 129 hp
Diesel Exhaust Fluid (DEF) Capacity 14.7 gal
Fuel Tank Capacity 172 gal

Performance

'@ 480V-3-phase, 0.8PF, 60Hz 100 kVA (80 kW), 120 Amps
@ 240V-3-phase, 0.8PF, 60Hz 100 kVA (80 kW), 241 Amps
@ 208V-3-phase, 0.8PF, 60Hz 100 kVA (80 kW), 278 Amps
@ 240V-single-phase, 1.0PF, 60Hz 72 kVA (72 kW), 300 Amps
@ 120V-single-phase, 1.0PF, 60Hz 72 kVA (72 kW), 300 x 2 Amps
@ 400V-3-phase, 0.8PF, 50H 100 kVA (80 kW), 144 Amps
Voltage Configuration 3-Position Switch
Runtime Hours @ 75% Load 37
Sound Level 67 dB(A)
Frequency Capability 50Hz/60Hz Switchable
Power Output @ 1800RPM 129 hp
Engine Make Cummins
Displacement 3.8 l
Emissions Tier Level Tier 4 Final
Aftertreatment Technology DOC / SCR / DPF

Dimensions

Length 166.1 in
Width 72.5 in
Height 94.7 in
