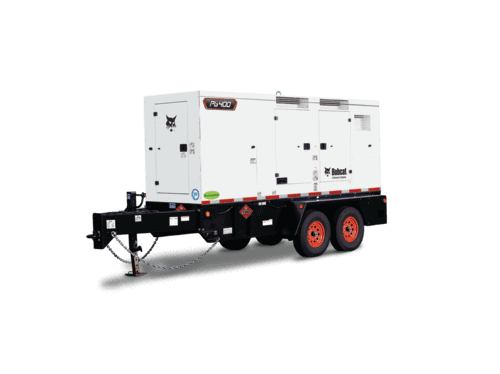

Bobcat PG400 Towable Generator

The PG400 is one of the most powerful towable generators on the market, yet its compact footprint allows for easy jobsite maneuverability.

  • Powered by a reliable Cummins® QSG12 engine
  • 20-hour runtime at 100% load
  • Delivers 402 kVA (322 kW) at 79 dB(A)

27 h

Runtime

402 kVA (322 kW)

Power Rating

76 dB(A)

Sound Level

Portable Power Equipment Special Offers

As low as 0% for 36 months* on select portable power products or low lease payments.

Bobcat PG400 Towable Generator Features

EPA Certified for Fuel Efficiency & Sound Levels

EPA Certified for Fuel Efficiency & Sound Levels

Engineered to meet or exceed EPA regulations, Bobcat portable generators offer industry-leading Tier 4 fuel efficiency and long runtimes, along with impressively quiet operation suitable for any application.

 User-Friendly Interface

User-Friendly Interface

Easy-to-read analog gauges make it easy for you to monitor your generator’s performance with a quick glance. Intuitive controls with built-in safety measures protect both you and your machine.

 Intelligent Load Management System

Intelligent Load Management System

Exclusive to Bobcat, the ILMS option protects your generator’s engine and exhaust after-treatment system during unfavorable low-load operating conditions by minimizing wet stacking, harmful sludge buildup and the need for costly repairs.

Bobcat PG400 Towable Generator Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Runtime Hours @ 75% Load 27
Power Output @ 1800RPM 475 hp
Diesel Exhaust Fluid (DEF) Capacity 46 gal
Fuel Tank Capacity 470 gal

Performance

@ 480V-3-phase, 0.8PF, 60Hz 402 kVA (321 kW), 484 Amps
@ 240V-3-phase, 0.8PF, 60Hz 402 kVA (321 kW), 969 Amps
@ 208V-3-phase, 0.8PF, 60Hz 402 kVA (321 kW), 1118 Amps
@ 240V-single-phase, 1.0PF, 60Hz 216 kVA (216 kW), 900 Amps
@ 120V-single-phase, 1.0PF, 60Hz 216 kVA (216 kW), 900 x 2 Amps
@ 400V-3-phase, 0.8PF, 50H 387 kVA (310 kW), 559 Amps
Voltage Configuration Link Board
Runtime Hours @ 75% Load 27
Sound Level 76 dB(A)
Frequency Capability 50Hz/60Hz Switchable
Power Output @ 1800RPM 475 hp
Engine Make Cummins
Displacement 11.8 l
Emissions Tier Level Tier 4 Final
Aftertreatment Technology DOC / SCR / DPF

Dimensions

Length 241 in
Width 83 in
Height 115 in
